Description
The LEVEL 2 system provides adjustable rebound tuning with our front & rear HQ CoilOvers. The System Includes: 2 Coil-Over Front Struts, 2 Coil-Over Rear Shocks & 4 Springs, with proper spring rate, rear upper and lower StrongArms, and all mounting brackets and hardware.
Front:
PERFORMANCE MONO-TUBE STRUT
Not just a replacement strut… The new Ridetech performance struts are designed with handling performance and ride quality in mind.
Features:
- 22 position rebound adjustments for ultimate ride control
- Steel Mono-Tube strut design
- Oversized rod guides for maximum strength and durability
- Extruded aluminum clamp mount
- Nitro carburized finish for a lasting durability
- Billet upper mounting bracket with built in camber/caster adjustment.
- Integrated thrust bearing
- Includes Hyperco Springs (made with high tensile steel)
- Delrin spring washers for easy spring retainer adjustment.
Rear:
RideTech CoilOvers
- Anodized finish protects against corrosion
- Available as fixed valve or rebound single adjustable
- CNC machined billet hardware
- Unique pinch clamp height adjuster uses finer thread for easy adjustment
- Includes 1/2″ bore x 1″ Kevlar lined bearings for noise free operation
RideTech 2 1/2″ coil over springs
built in Indiana by HyperCo:
High tensile premium steel CNC cold wound, less weight, more resistant to bowing, increased travel with durable powered coated finish
- Monotube gas pressure design offers superior fade free performance
- Impact forged aluminum body provides superior strength and reliable service
- Larger 1.834″ piston provides outstanding ride quality
- Double sealed rod guide with dust cover eliminates oil leakage
- 5/8″ chrome shock shaft

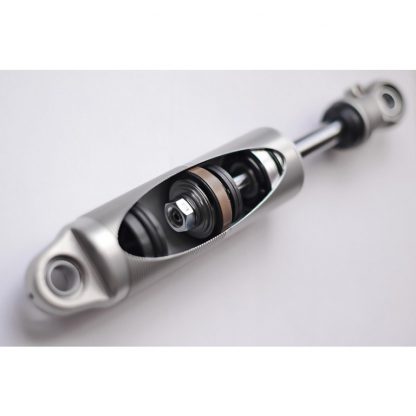

RideTech Aluminum Mono Tube Shocks
Great Performance
Mono-tube construction sets this coil-over shock apart – it means consistent performance and great ride quality
INSTRUCTIONS
12140210_WEB.PDF
Installation Instructions
19-SHOCK-TUNING-GUIDE.PDF
Adjustable Shock Tuning Guide
COILOVER_INSTRUCTIONS.PDF
Assembly Instructions
VEHICLE FITMENT
| MAKE | MODEL | YEAR |
|---|---|---|
| FORD | MUSTANG | 1994 – 2004 |
