Description
Complete air suspension system for 2010-2015 Camaro includes HQ Series front Shockwave Struts, rear Shockwaves and mounting brackets. Provides the lowest stance possible while improving handling and ride quality. You get it all. Shockwaves® mount just like Coilovers and replaces the coil spring with an adjustable air spring. The result is a compact solution with a huge range of tuning options. Rebound adjustment lets you fine-tune shock absorber valving to suit your driving style and vehicle specs. Shockwaves are a simple, high-tech way to achieve extreme lowering at car shows with handling and ride quality that is on par with coilovers at ride height. With more configuration options than ever before, Shockwaves are the ultimate, high-performance air suspension system. Offers true bolt-on installation.
Front HQ Series Shockwave Struts:
- Steel body monotube strut design is rebound adjustable and features oversized rod guides for maximum strength and durability
- Extruded aluminum clamp mount with integrated stainless brake line, ABS for bolt on installation
- Billet upper strut mount with built in camber/caster adjustment
- Integrated Thrust Bearing
- Extremely durable Firestone air springs
- 1,000,001 Mile Warranty
Rear HQ Series Shockwaves:

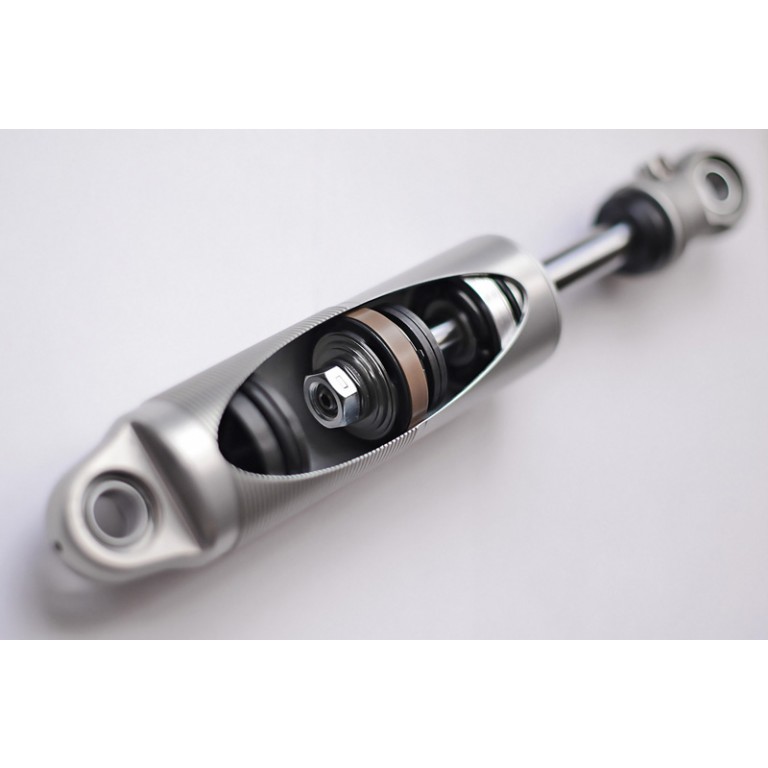

- Impact-forged aluminum shock body with a monotube design to provide excellent ride quality and handling
- 24 positions of rebound adjustment
- Lightweight composite air spring mounts
- Application specific mounting to provide a seamless installation
- 1,000,001 Mile Warranty
***Control system not included. To complete this Air Suspension system please choose from one of our Compressor Systems.
INSTRUCTIONS
11500298.PDF
Install Instructions
VEHICLE FITMENT
| MAKE | MODEL | YEAR |
|---|---|---|
| CHEVROLET | CAMARO | 2010 – 2015 |
