Wilwood Complete 6 Piston Superlite Brake System | 1963-1987 C10

$9,139.15 inc. GST

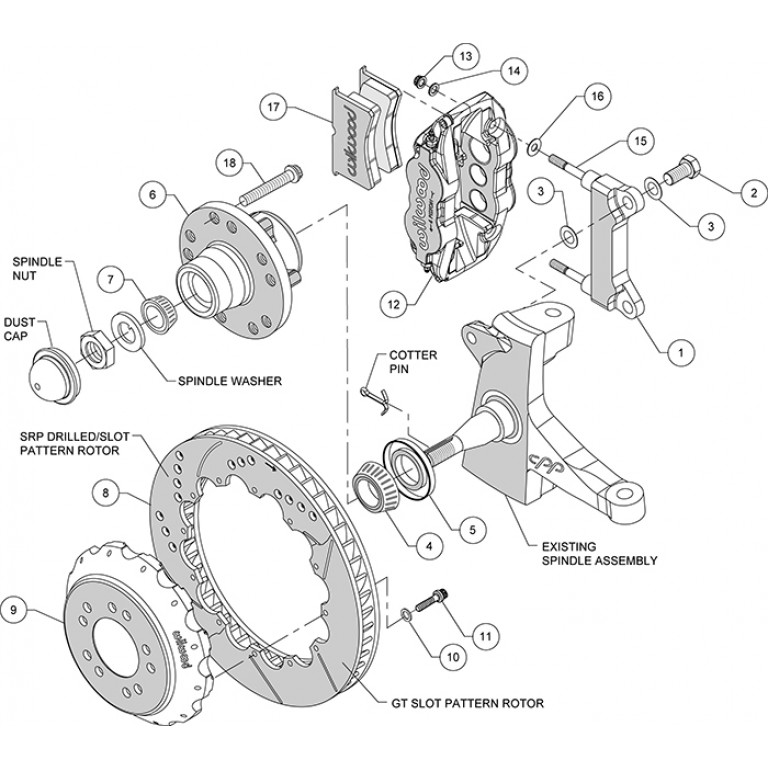

Wilwood Complete Superlite Brake System with 13″ Rotors for trucks equipped with the RideTech / CPP Modular 2.5″ Drop Spindle.  Fits most 17″ and larger wheels, verify fitment with template.  Designed for use with 5 lug wheels with 4.75″ or 5.00″ bolt pattern.

Kit Includes:

  • Front Superlite 6 Piston Calipers (Red or Black)
  • Front 13.06″ Rotors, 1.25″ thick, Drilled and Slotted
  • Front -3 Stainless Steel Braided Lines with fittings (14″ on 63-72 & 22″ on 73-87)

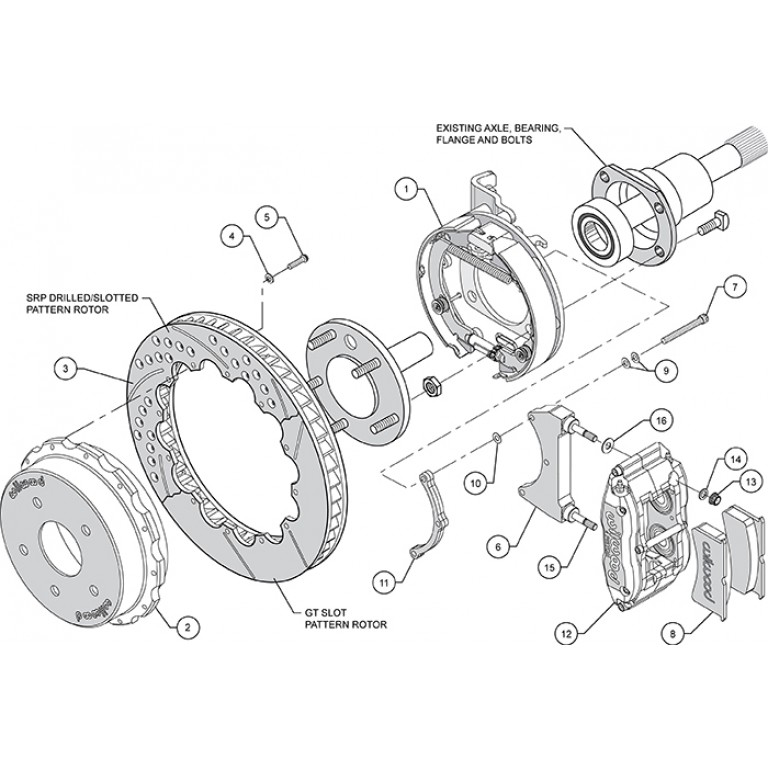

  • Rear Superlite 4 piston Calipers (Red or Black)
  • Rear 12.88″ Rotors, 1.1″ thick Drilled and Slotted with parking brake assembly
  • Rear -3 Stainless Steel Braided Lines with fittings (14″)
  • Parking Brake Cables

 This Brake System is offered for 2 different axle flanges:

  • Stock style “Large C10″ Flange with 2.42” offset
  • 9″ Ford – Big Ford – New Style / Torino with 2.5″ Offset (Other variations also available)

 When converting from drum brakes to disc brakes a new Master Cylinder is required.  The Wilwood Tandem Aluminum Master Cylinder is great looking all-in-one solution.   They are available in 3 finishes; Bare, Black E-Coat and Media Burnished.  Bore size selection is important to create the desired pedal feel, we have found the information below to be a good rule of thumb.

  • 11″-12″ rotors with Manual Brakes – 15/16″ Bore
  • 11″-12″ rotors with Power Brakes – 1″ Bore
  • 13-14″ rotors with Manual Brakes – 7/8″ Bore
  • 13-14″ rotors with Power Brakes – 1″ Bore
SKU: N/A Category:

Additional information

Weight 66 kg
Caliper Colour

Black, Red

Year Range

1963-1972, 1973-1987

Axle Flange Type

C10 Large, Ford 9" (Torino Big-Bearing)
