Description

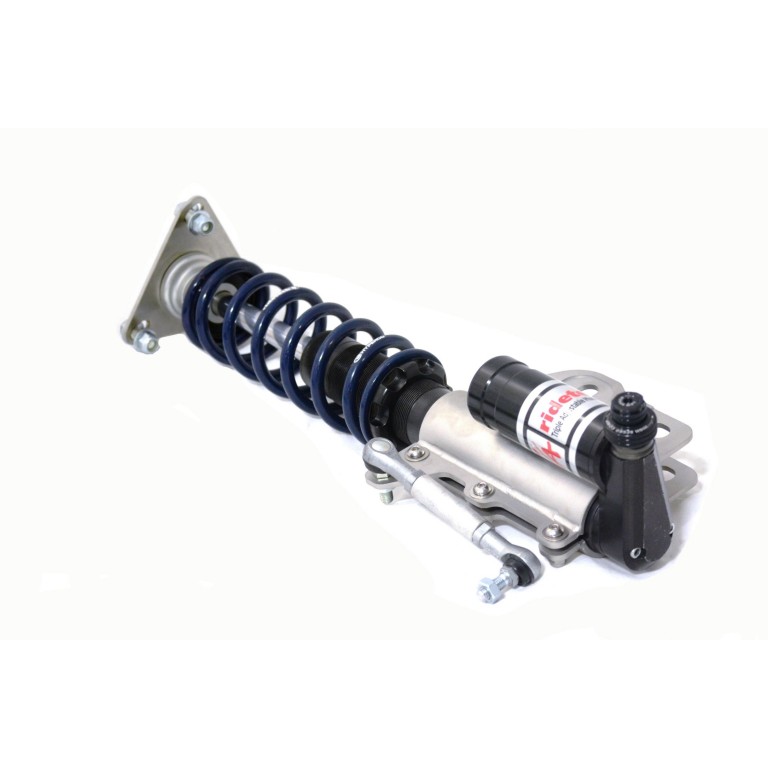

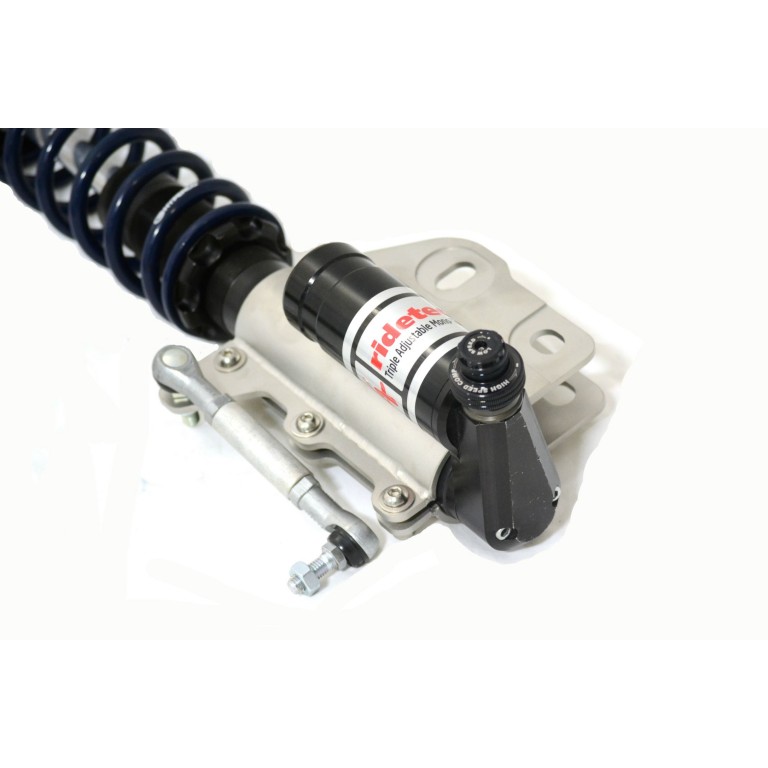

Upgrade your 2015-2022 Mustang with TQ Series Struts for track-quality handling and bolt-on installation. Rebound and dual compression adjustments provide precise tuning capability. Piggyback reservoirs provide consistent fluid temps in all environments, as well as easy access to compression tuning knobs. TQ “Track Quality” Series Struts provide single rebound adjustment combined with dual stage – high speed and low speed – compression adjustment. The high speed adjustment feature allows tuning of instances that might induce a high-speed excursion of the piston rod. This includes rapid changes in suspension loading such as quick directional transitions in autocross competition. The high speed adjustment also allows fine tuning for impact harshness typically found during street driving such as pot holes, speed bumps, and other road irregularities. Low speed adjustment allows tuning of ride quality, as well as the general cornering characteristics of typical road course and winding road cornering use. TQ Series Struts are the ultimate choice for autocross, track days, drag racing and ultra-high performance use.
Features include monotube design, built-in Camber/Caster Adjustment, extruded aluminum clamp mount, integrated thrust bearing, and billet upper mounting bracket. As with all RideTech CoilOvers, ride height is adjustable. TQ Series Struts are built to perform and built to last. They’re backed by our exclusive 1,000,001 mile warranty. RideTech develops our shock calibrations and spring rates through thousands of cross-country test miles, on our exclusive test track and at competition events from coast to coast. We understand the suspension needs of your Mustang better than any other company. This front strut system includes triple adjustable TQ Series Struts with piggyback reservoirs and Hyperco coil springs with proper spring rate.
INSTRUCTIONS
12273111.PDF
Installation Instructions
19-SHOCK-TUNING-GUIDE.PDF
Adjustable Shock Tuning Guide
TQ_INTAKE_SHEET.PDF
TQ Intake Sheet
VEHICLE FITMENT
MAKE | MODEL | YEAR |
---|---|---|
FORD | MUSTANG | 2015 – 2022 |
